SIDUS G2 TIMERS

F1B

Developed in conjunction with experienced F1B modelers, this dependable device is intended as a replacement of popular
clockwork timers. It is extremely easy to use for all modelers.
Key advantages of the Sidus timer include: accurate timings, remote dethermalization (RDT), and the ability to be programmed through a wireless interface.

TIMER
Nr. of functions: 6 (F1 to F6)
Configuration: 1 front arm + 5 rear arms
Timing: F1, F2: 0.01 to 9.99 sec, F3 to F5: 0.1 to 99.9 sec, F6: 1 to 720 sec
Control board size: 35.0 w x 20.0 h mm
RDT: Built-in receiver and whip antenna - code encryption
Battery: Rechargeable lithium polymer cell, duration exceeds 60 flights of 180 sec. each


PROGRAMMER
Display: LCD - 2 lines x 16 characters
Keyboard: 4 keys
Size: 113 × 59 x 24 mm (4.5 x 2.3 x .95")
RDT: Built-in transmitter and helical antenna, code encryption
Battery: Rechargeable lithium polymer cell - duration exceeds 1 year



F1B/G Starter Kit


Timer Control Board, 1 or 3 Servo Programmer Lite, RDT Button, Battery and Charger

Please contact for prices



F1B Mechanical Assembly 5 Arms





F1B Mechanical Assembly 6 Arms





F1B Mechanical Start Switch Assembly



F1C

Developed in conjunction with experienced F1C modelers, this dependable device provides protection against many
typical problems of the modern F1C models, mostly caused by their high frequency vibrations and fuel.
Mainly intended as a replacement of popular clockwork timers, it is easy to use for all modelers.
Key advantages include: accurate timings, remotely controlled dethermalization (RDT) and the ability to be programmed through a wireless interface.

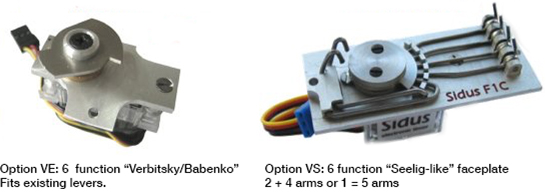

Mechanical Assembly Options include 2+4 arms OR 1+5 arms.
Functions are operated by a rugged micro servo with ball bearing and Karbonite gear, stepped to the release levers.
The mechanical assembly incorporates a ball race to take the loads imposed by the levers and relieve the servo that only applies
torque to rotate the disc when a programmed function expires. Two options are available.

TIMER
Nr. of functions: 6 (F1 to F6)
Configurations: 2 front arms + 4 rear arms, 1 front arm + 5 rear arms, Wing-Wiggler
Timing: F1, F2: 0.01 to 9.99 sec, F3 to F5: 0.1 to 99.9 sec, F6: 1 to 720 sec
Mech. assembly size: 58.0 w x 25.4 h x 24.5 d mm (2.28 x 1.0 x .96")
Control board size: 46.0 w x 22.0 h mm
Weight: ~ 35 gms including pushbutton and battery
RDT: built - in receiver and whip antenna - code encryption
Battery: Rechargeable lithium polymer cell - duration exceeds 80 flights of 180 sec. each



F1C 6 Function VE Mechanical Assembly

Please contact for prices



F1C 6 Function SE Mechanical Assembly





F1J 6 Function Mechanical Assembly





Magnetic Start Switch





Hall Sensor/Cable



F1Q



F1Q 6 Function Mechanical Assembly

Please contact for prices



F1Q Energy Limiter EDIC Certified





Magnetic Start Switch





Hall Sensor/Cable



ACCESSORIES

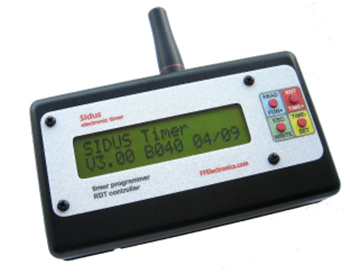

Sidus Wireless Programmer

Display: LCD - 2 lines x 16 characters
Keyboard: 4 keys
Size: 113 × 59 x 24 mm (4.5 x 2.3 x .95")
RDT: Built-in transmitter and helical antenna, code encryption
Battery: Rechargeable lithium polymer cell - duration exceeds 1 year

Please contact for prices



Sidus G2 BTBox, Downloads Flight Data





LED Flasher



BATTERIES

SLFT-2050A

210 MAH Battery

Please contact for prices

SLFT-2048A

280 MAH Battery



SLFT-2049

350 MAH Battery



SLFT-2042

120MAH For Sidus RDT



SLFT-2052A

Sidus Programmer Battery
